Slant Bed CNC Lathe
Slant bed CNC lathes feature an inclined bed design for improved chip evacuation, higher rigidity, and stable high-speed turning performance. Widely used in automated production, shaft machining, and precision metal components, slant bed machines provide excellent efficiency and machining accuracy.
Showing all 4 resultsSorted by latest
-
Heavy Duty Slant Bed CNC Lathe for Large Diameter Parts TCK4550–TCK4563
A heavy duty slant bed CNC lathe is designed for large-diameter cylinder barrels and heavy shafts where standard machines may struggle with rigidity, vibration control, and cutting stability. The TCK4550 through TCK4563 feature a standard 10-inch hydraulic chuck and Φ87mm spindle bore. This allows bar stock up to Φ72mm to feed straight through the headstock, while the 11/15 kW spindle motor provides the power required for interrupted cuts on forged or thick-wall stock.
-
Slant Bed CNC Lathe for Shaft Machining TCK5052–TCK50100
Does a 1060mm Z-axis travel provide value when your production mainly involves 500mm shafts? In most cases, it does not. This is why this series comes in three Z-axis lengths built around one shared drivetrain, ensuring the frame is neither oversized nor undersized for the job at hand.
-

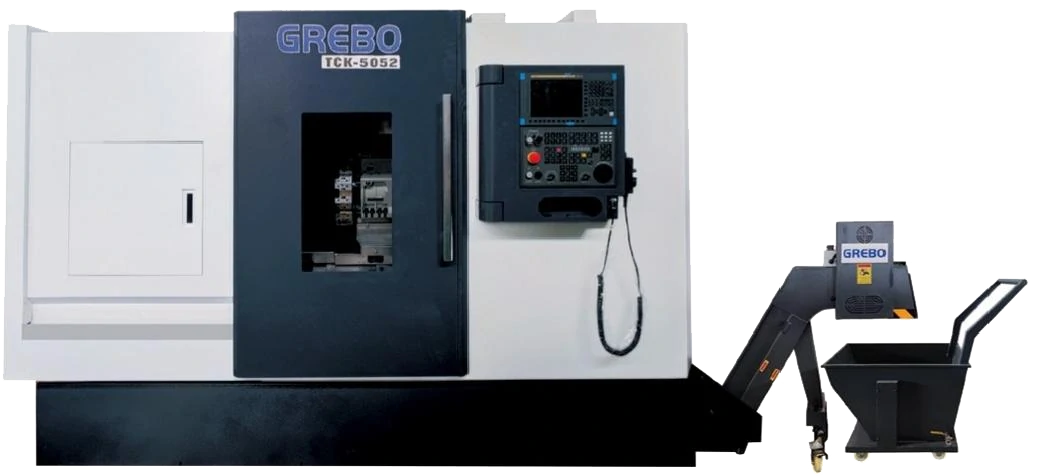

TCK5052 Slant Bed CNC Lathe – Φ570mm Swing, 4200rpm High-Speed Turning for Shafts & Flanges
High-speed turning. Tight tolerances. 4200rpm efficiency. TCK5052 Slant Bed CNC Lathe — Φ570mm swing, 8" hydraulic chuck, Fanuc 0i-TF control & 12-station turret. Engineered for precision shafts, flanges, and valve bodies with stable batch production, superior chip evacuation, and optimized dynamic balance at high RPM.
-
TCK4550 Slant Bed CNC Lathe – Φ500mm Swing, 12-Station Turret for Shafts & Auto Parts
Precision turning. Fast cycles. ±0.005mm repeatability. TCK4550 Slant Bed CNC Lathe — Φ500mm swing, 580mm length, Fanuc 0i-TF control & 12-station hydraulic turret. Built for shafts, flanges, and automotive components with stable high-volume production.
