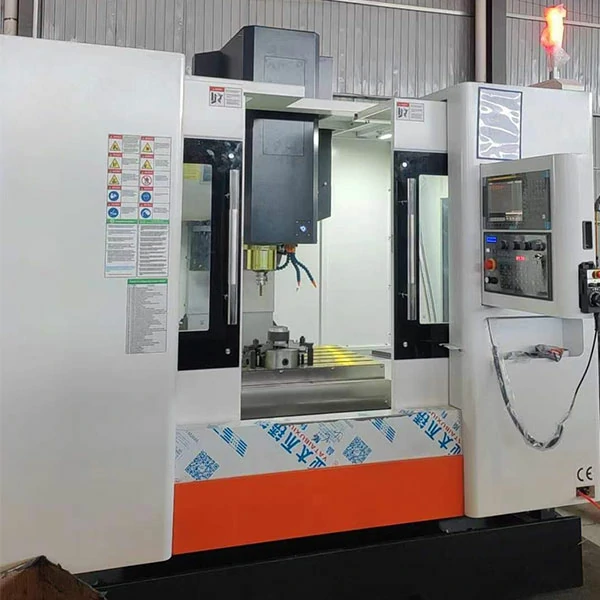

High-Speed Vertical Machining Center for Precision Small Parts

Achieving fast cycle times for small-part batches doesn’t mean sacrificing rigidity. The VMC650 and VMC850 share an identical, rigid platform featuring 35 mm roller linear guideways and a Φ36 ballscrew. The only difference is the VMC850’s extra 200 mm of X-axis travel, letting you match the exact footprint your shop floor needs. Both models consistently hold positioning accuracy within 8 μm and repeatability within 5 μm. This allows shops machining aluminum housings, brass fittings, or small steel brackets to hold tight tolerances without paying for the oversized casting of a heavy-duty machine, saving both floor space and capital.

We have manufactured this series since 2005 at our 28,000 m² facility in Tengzhou, China. The plant is fully CE-certified and operates under strict ISO 9001:2015 quality standards.

That said, if your workpiece regularly exceeds 800 mm in length or requires mold-grade heavy cutting, a standard heavy-duty vertical machining center with larger casting mass is the more appropriate choice. The compact footprint of this series perfectly suits crowded production floors where every square meter carries a cost.

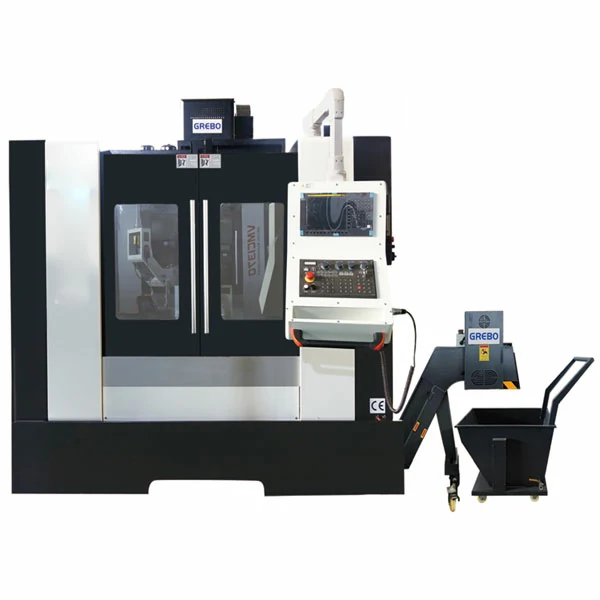

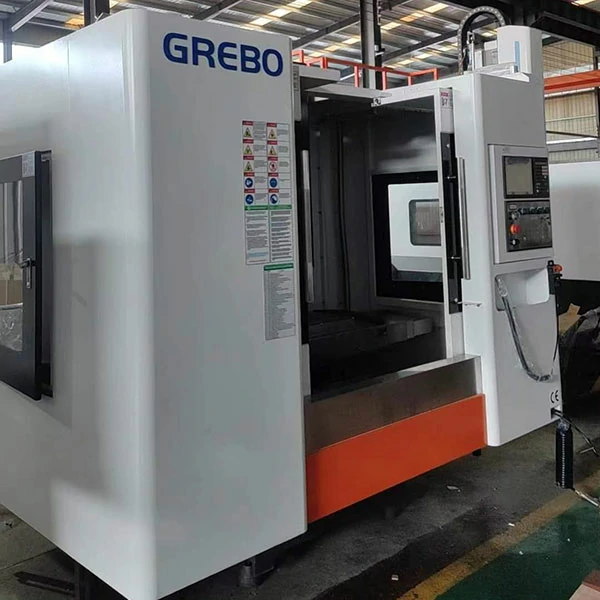

Key Features of the High-Speed Vertical Machining Center

This compact vertical machining center combines 35 mm roller guideways and a 12,000 rpm direct-drive spindle to maintain 8 μm positioning accuracy during rapid, high-volume production.

A 36 m/min rapid traverse and 12,000 rpm spindle speed reduce idle time and speed up the machining of small precision components. The 35 mm roller linear guideways on every axis pair with a Φ36 × P16 ballscrew to reduce moving mass while preserving rigidity for aluminum and light steel.

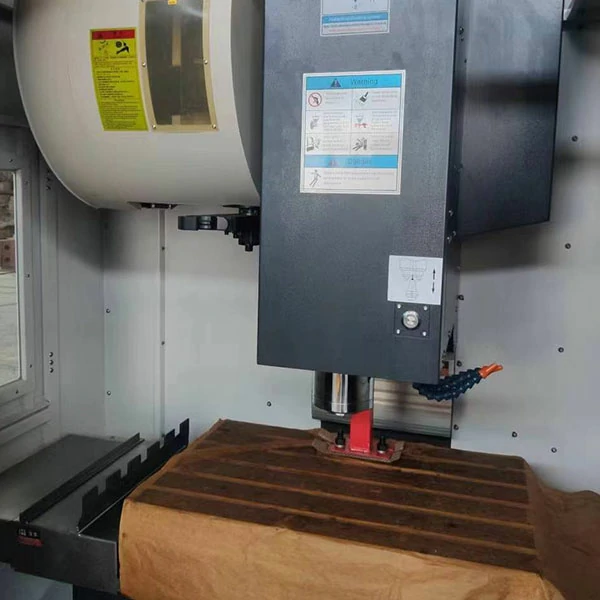

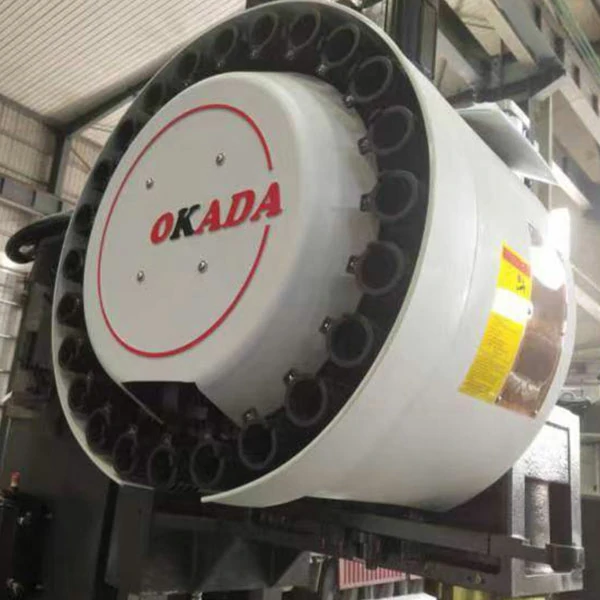

A 12,000 rpm direct-drive spindle with BT40 taper delivers enough surface speed for high-feed aluminum milling without the belt losses found in slower configurations. The 24-pocket arm-type tool changer keeps multiple drills, end mills, and taps ready, minimizing non-cutting time during repeat batch runs.

Positioning accuracy holds within 8 μm and repeatability within 5 μm across the 500 mm Z travel, because the fixed column design resists thermal drift during long unattended shifts.

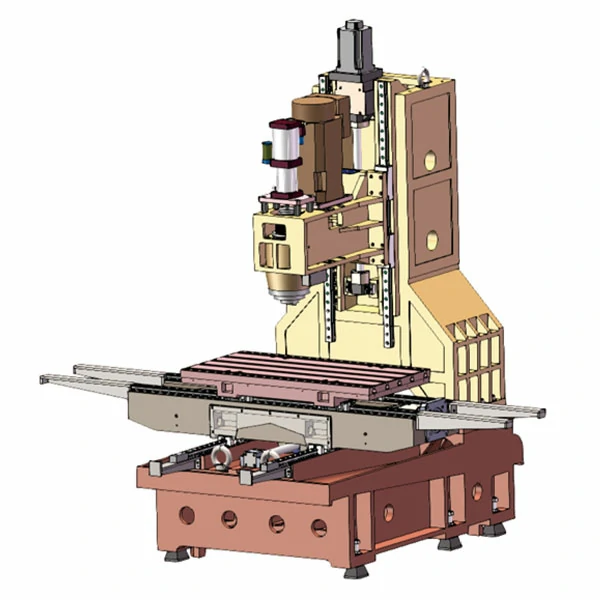

Drive Chain and Precision Engineering

The drive chain on this high-speed vertical machining center uses a Φ36 ballscrew (16 mm pitch) and 35 mm roller guideways. This converts servo torque into rapid axis motion without the inertia penalty of heavier frames.

If your job is limited to pure drilling and tapping under 400 mm, a dedicated tapping center might offer a lower cost per hole. However, this VMC series earns its value the moment milling contours, pockets, and multi-operation setups enter the workflow.

The smaller diameter reduces rotating mass, so a 36 m/min rapid traverse is possible without overshoot on direction reversal.

Expert Selection Guide: Choose the VMC650 when parts stay inside 600 mm and mass stays under 400 kg; the 5.5 kW motor keeps the footprint compact and power draw low. Select the VMC850 when the part reaches 800 mm or the cut calls for 7.5 kW, since the larger table handles bigger fixtures without requiring heavy-duty framing.

We recommend specifying the 24-pocket magazine even on the VMC650. The extra four stations often remove one manual intervention per batch, allowing one operator to manage more machines simultaneously.

Testing against ISO 230-2:2014 confirms 8 μm positioning accuracy and 5 μm repeatability, providing a reliable baseline for fixture qualification.

Technical Specifications: VMC650 vs VMC850

For this compact CNC machining center series, we document positioning accuracy, spindle power, and worktable capacity for every model variant so you can match the machine envelope to your fixture and part size.

Item	Description	Unit	VMC650	VMC850
X/Y/Z axis travel	Travel distance (X/Y/Z)	mm	600 / 500 / 500	800 / 500 / 500
Spindle nose to worktable	Distance from spindle nose to worktable	mm	100 – 600	150 – 650
Spindle center to column	Distance from spindle center to column	mm	573	571
Ball screw diameter	Ball screw diameter (X/Y/Z)	mm	Φ36 / Φ36 / Φ36	Φ36 / Φ36 / Φ36
Ball screw pitch	Pitch	mm	16	16
Linear guideway (X-axis)	Width/Type, Qty, Blocks	–	35mm Roller / 2 rails / 4 blocks	35mm Roller / 2 rails / 4 blocks
Linear guideway (Y-axis)	Width/Type, Qty, Blocks	–	35mm Roller / 2 rails / 4 blocks	35mm Roller / 2 rails / 4 blocks
Linear guideway (Z-axis)	Width/Type, Qty, Blocks	–	35mm Roller / 2 rails / 4 blocks	35mm Roller / 2 rails / 4 blocks
Worktable size	Worktable dimensions	mm	800 × 500	1000 × 500
Max loading capacity	Maximum table load	kg	400	500
T-slots	Number × width × pitch	mm	5 × 18 × 90	5 × 18 × 90
Spindle taper	Spindle taper type	–	BT40	BT40
Spindle speed	Spindle speed (Standard / Optional)	rpm	12000 (8000/10000)	12000 (8000/10000)
Main motor power	Main motor power (Continuous / 30min)	kW	5.5 / 7.5	7.5 / 11
Fast traverse rate	Rapid traverse rate (X/Y/Z)	m/min	36 / 36 / 30	36 / 36 / 30
Cutting feed rate	Cutting feed rate range	mm/min	1 – 10000	1 – 10000
Feed motor power	Feed motor power (X/Y/Z)	kW	2.0 / 2.0 / 3.0	2.0 / 2.0 / 3.0
Tool magazine	Tool magazine (Capacity & Type)	pcs	20 or 24, Arm type	24, Arm type
Max tool diameter	Maximum tool diameter	mm	120 (adjacent pocket empty)	120 (adjacent pocket empty)
Max tool weight	Maximum tool weight	kg	8	8
Max tool length	Maximum tool length	mm	300	300
Positioning accuracy	Positioning accuracy (ISO 230-2)	mm	0.008 (8μm)	0.008 (8μm)
Repeatability	Repeatability	mm	0.005 (5μm)	0.005 (5μm)
Machine dimensions	Overall dimensions (L×W×H)	mm	2400 × 2100 × 2400	2500 × 2350 × 2600
Machine weight	Machine weight (approx.)	kg	4000	4500

CNC system options: FANUC, MITSUBISHI, SIEMENS, SYNTEC, GSK.

Standard Configuration

This high-speed vertical machining center series ships from Tengzhou with a Mitsubishi M80A control system, direct-drive 12,000 rpm spindle, and 24-pocket arm-type tool changer as standard equipment.

• Mitsubishi M80A control system
• Taiwan direct-drive spindle (12,000 rpm)
• Mitsubishi servo drive motors (X/Y/Z axes)
• Mitsubishi spindle motor
• USB interface for data transfer
• Thread milling capability
• Rigid tapping
• Fully enclosed safety cover
• Stainless steel telescopic covers for rails
• Spindle coolant system
• Centralized automatic lubrication system
• LED work lamp
• Tri-color status indicator lamp
• Manual pulse generator (MPG)
• 24-pocket arm-type tool changer (20-pocket optional on VMC650)
• Air and water coolant guns
• ATS (Air Through Spindle)
• Leveling blocks and bolts
• Taiwan 3-axis roller linear guideways
• Taiwan ball lead screws
• Taiwan pneumatic cylinders
• Spindle nose air blast (air curtain)
• Auto interrupt & power off system (M30)

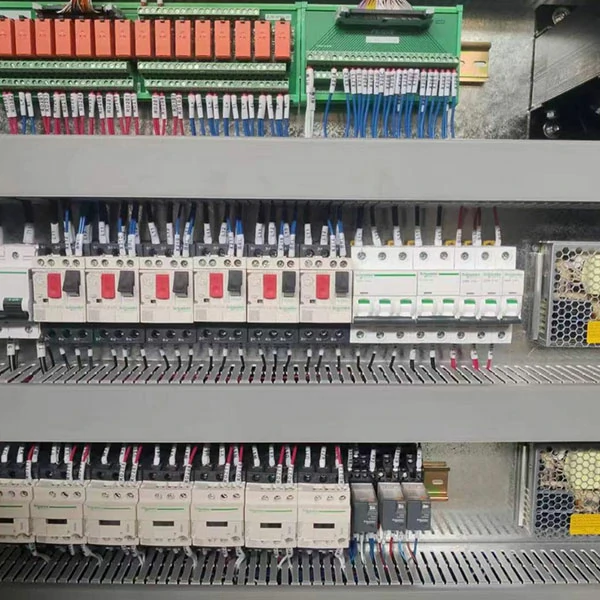

• Heat exchanger for electrical cabinet
• Chain-type chip conveyor and chip bucket
• Safety door
• English user manual

Vertical Machining Center for Small Parts Applications

This compact vertical machining center for small parts is versatile and used across industries requiring high precision and efficient batch production. Typical applications include:

• Aluminum electronic housings and 3C structural components
• Automotive brackets, pump impellers, and compressor parts
• Precision fixtures, jigs, and inspection plates
• Small molds and detailed cavity machining
• Brass and stainless steel fluid control components (e.g., valve bodies)

Typical Application Cases: Real-World Performance

Real-world application scenarios demonstrate how the 12,000 rpm direct-drive spindle and 24-tool magazine reduce cycle time and setup frequency, allowing shops to handle higher volumes without expanding their footprint or adding shifts.

*Note: Data is based on actual customer production environments. Cycle times and results may vary based on specific tooling, cutting parameters, and operator experience.

Why Choose Our High-Speed Vertical Machining Center?

• Factory Direct: Over two decades of manufacturing experience means direct-from-factory pricing without compromising build quality, testing standards, or delivery timelines.
• Global Components: We integrate recognized core components (Mitsubishi/FANUC controls, Taiwan ballscrews, and high-grade bearings) for long-term reliability and easy maintenance worldwide.
• Custom Configurations: Our engineering team provides custom setups, including specific spindle speeds, tool magazine capacities, and automation interfaces, to match your exact workflow.

Frequently Asked Questions

Here are common questions about this high-speed vertical machining center, covering worktable capacity, roughing and finishing capabilities, pricing, and after-sales support.

How does the pricing and value of this compact VMC compare to Japanese or premium Taiwanese brands?

While premium Japanese or top-tier Taiwanese brands offer excellent reputations, this VMC series provides a cost-effective alternative while maintaining reliable precision and configuration flexibility. By using globally recognized core components (Mitsubishi M80A control, Taiwan direct-drive spindle, and Taiwan ballscrews), we ensure reliable, repeatable performance. Many customers achieve improved productivity through shorter cycle times and reduced setup operations, making it a practical choice for growing machine shops.

What is the typical lead time and after-sales support structure?

For standard configurations, the typical production and testing lead time is 45 to 60 days. We provide full English operation manuals, remote video commissioning support, and access to a global network of spare parts. Our control systems (Mitsubishi/FANUC/Siemens) also allow our engineers to diagnose 80% of issues remotely, minimizing your machine downtime.

Can this VMC handle both roughing and finishing in one setup?

Yes. The BT40 taper and 12,000 rpm direct-drive spindle deliver enough torque for light-to-medium roughing in aluminum and brass, while 8 μm positioning accuracy supports finishing passes on the same fixture. For heavy, continuous steel roughing, the optional 8,000 rpm belt-drive spindle improves low-speed torque.

Is a fourth-axis upgrade worth it for prismatic parts?

For pure prismatic parts with orthogonal faces, a fourth axis adds cost without saving setup time. It becomes valuable when angled holes, helical grooves, or multi-face tombstone fixtures enter the process, because one clamping then replaces multiple manual repositioning steps and reduces datum-shift error.

What is the typical tool change time and does it affect cycle time on small batches?

The arm-type tool changer on this series completes a typical exchange in roughly 2.5 to 3.5 seconds. On batches under fifty pieces, that interval is usually shorter than the chip-clearing and inspection gap between operations, so the magazine rarely becomes the bottleneck.
