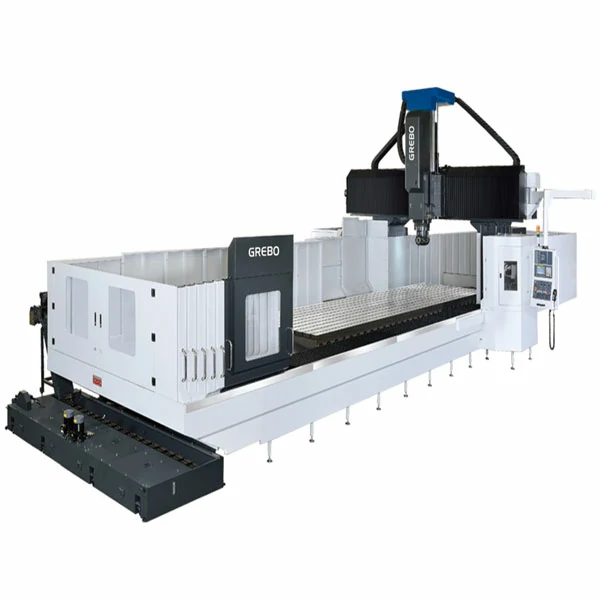

Ultra Large Double Column Machining Center for Heavy Parts GMC4032–GMC8032

When a wide pass applies heavy feed, a standard gantry’s Y-axis can twist, pushing hole positions out of tolerance. The GMC4032–GMC8032 lineup counters this by holding 3200mm column spacing and pairing the Y-axis with a Φ80mm ballscrew and 8 guide blocks to control torsional flex.

Unlike the 2700mm column spacing found in standard extra-large gantries, this 3200mm width is specifically engineered to accommodate oversized flanges and wide energy sector castings without requiring complex off-center fixturing. It is built for heavy equipment manufacturing where conventional frames lose rigidity.

Manufactured in a 28,000-square-meter facility under ISO 9001:2008 and CE certification, this series ships to over 50 countries.

Ultra Large Double Column Machining Center Key Features

This series scales its X-axis and Y-axis structures independently. Wide parts and long parts receive specific structural support rather than a uniform oversized specification.

• The Y-axis carries a Φ80mm/20mm-pitch ballscrew with 8 guide blocks across all four models, improving Y-axis positioning stability during wide-table passes that a standard gantry cannot sustain.
• The X-axis ballscrew steps from Φ80mm on the GMC4032-GMC5032 to Φ100mm on the GMC6032-GMC8032, managing deflection once travel exceeds 6000mm.
• Z-axis rapid traverse drops from 10 to 8 m/min on the GMC6032 and GMC8032. This deliberate reduction protects the Z-axis ballscrew under the heavy spindle head of a 57-67 ton machine.
• Worktable loading capacity reaches 22 tons on the GMC8032. This giant gantry machining center carries heavy castings and welded structures that smaller classes would require added fixturing to support.
• All four models share a 26kW BT50 belt-drive spindle at 6000 rpm, meaning model selection depends on part size rather than cutting power requirements.

Optional Configurations for Non-Standard Requirements

Optional equipment extends the base machine into specific non-standard workflows rather than providing generic upgrades.

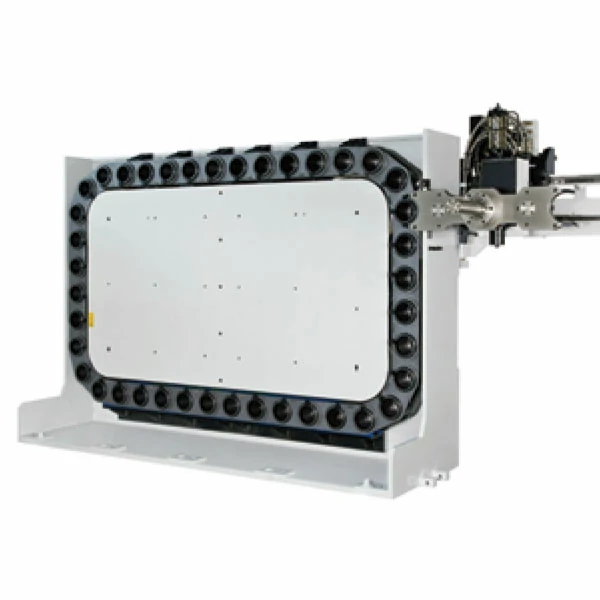

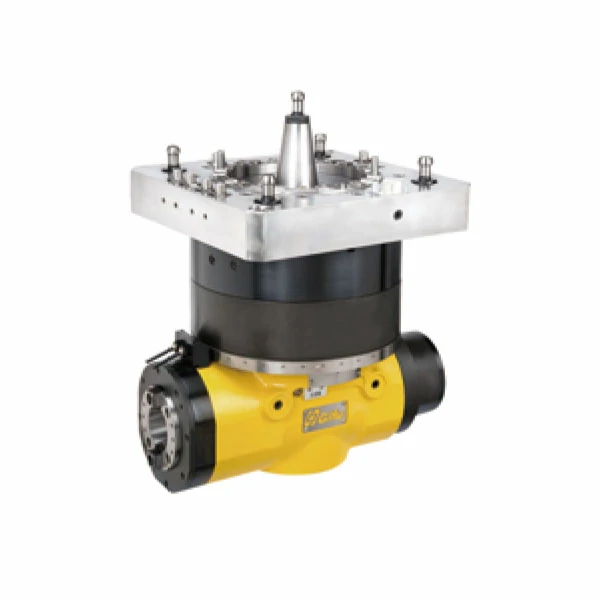

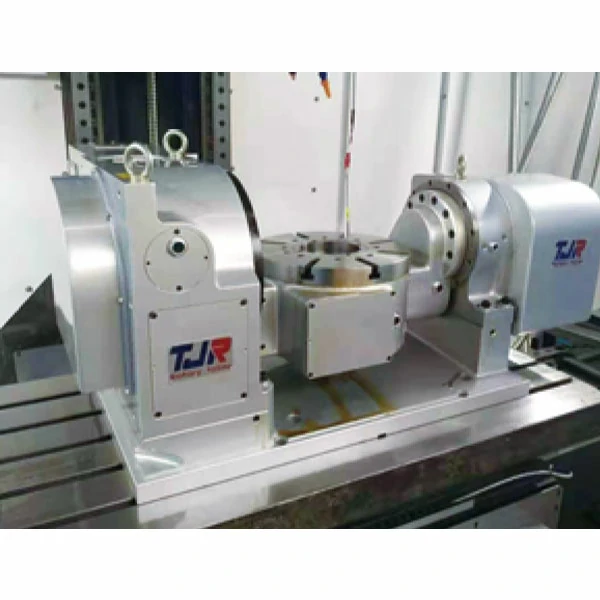

• A 5th-axis rotary table with a hydraulic station allows multi-face structural parts to be finished in one setup. This prevents the alignment errors introduced by repositioning a 15-20 ton casting between operations.
• ZF/BF gearboxes deliver the low-speed, high-torque output required for heavy roughing. This option suits skim-cut work on welded parts with significant post-weld distortion.
• Heidenhain linear scales close the position loop fully, reducing thermal drift during the long unattended cycles typical for oversized energy and structural components.

Engineering Insights: Matching Structure to Oversized Workpiece Demands

This Ultra Large Double Column Machining Center series bridges the gap when a workpiece exceeds the width or weight envelope of a standard gantry machining center, removing the compromise between table size and structural rigidity.

A 3200mm-wide worktable under heavy Y-axis feed creates significant torsional load on the beam. The GMC4032-GMC8032 lineup addresses this with a dedicated Φ80mm ballscrew and 8-block distribution on the Y-axis.

Engineer note: do not request a faster Z-axis rapid on the GMC6032/GMC8032. The 8 m/min limit is a deliberate design choice to protect the spindle head ballscrew from repeated shock loads on a 57-67 ton frame.

On the X-axis, the GMC6032 and GMC8032 extend travel to 6000-8000mm. At this length, a Φ80mm screw would flex at full extension, so the design steps up to Φ100mm rather than relying solely on guide blocks.

If the workpiece stays under 3 meters wide or 6 meters long, the added Y-axis structure here is unnecessary. An extra large gantry machining center covers that range at a lower structural cost. General oversized-part inquiries can also start from the gantry machining center category page.

Model Comparison

This quick reference table highlights the core scaling differences across the GMC4032–GMC8032 series to help you identify the right capacity for your workpiece.

Model	X Travel (mm)	Y Width (mm)	Max Load (Ton)
GMC4032	4000	3200	12
GMC5032	5000	3200	15
GMC6032	6000	3200	18
GMC8032	8000	3200	22

Technical Specifications

A double column machining center at this scale uses independently scaled X-axis and Y-axis structures. This supports workpieces up to 8000mm long and 3200mm wide while minimizing torsional deflection.

Parameter	Unit	GMC4032	GMC5032	GMC6032	GMC8032
X / Y / Z Axis Travel	mm	4000 / 3200 / 1250	5000 / 3200 / 1250	6000 / 3200 / 1250	8000 / 3200 / 1250
Spindle Nose to Worktable	mm	250 – 1500	250 – 1500	250 – 1500	250 – 1500
Distance Between Two Columns	mm	3200	3200	3200	3200
Leadscrew Dia./Pitch (X/Y/Z)	mm	X: Φ80/20 Y: Φ80/20 Z: Φ63/16	X: Φ80/20 Y: Φ80/20 Z: Φ63/16	X: Φ100/20 Y: Φ80/20 Z: Φ63/12	X: Φ100/20 Y: Φ80/20 Z: Φ63/12
Guideway Type/Width (X/Y/Z)	mm	X/Y: 55 linear Z: Box way	X/Y: 55 linear Z: Box way	X/Y: 55 linear Z: Box way	X/Y: 55 linear Z: Box way
Guide Block Qty (X / Y)	pcs	14 / 8	18 / 8	24 / 8	32 / 8
Worktable Size	mm	4000 x 3000	5000 x 3000	6000 x 3000	7000 x 3000
T-slot (Qty x Width x Pitch)	mm	15 x 28 x 200	15 x 28 x 200	15 x 28 x 200	15 x 28 x 200
Max Loading Capacity	Ton	12	15	18	22
Spindle Taper	–	BT50	BT50	BT50	BT50
Spindle Transmission	–	Belt drive	Belt drive	Belt drive	Belt drive
Spindle Speed	rpm	6000	6000	6000	6000
Spindle Motor Power	kW	26	26	26	26
X / Y / Z Fast Moving Speed	m/min	10 / 10 / 10	10 / 10 / 10	10 / 10 / 8	10 / 10 / 8
Cutting Feed Speed	mm/min	1 – 5000	1 – 5000	1 – 5000	1 – 5000
Tool Magazine Capacity and Type	pcs	24, Disc	24, Disc	24, Disc	24, Disc
Positioning Accuracy	mm	0.008	0.008	0.008	0.008
Repeat Accuracy	mm	0.005	0.005	0.005	0.005
Machine Net Weight	kg	47000	52000	57000	67000

Positioning and repeat accuracy figures are measured according to standard machine tool acceptance testing procedures.

Standard Configuration

Standard equipment on this double column machining center includes a 26kW BT50 spindle, Mitsubishi M80A control, and dual chip conveyors rated for heavy structural work.

• Mitsubishi M80A CNC controller with Mitsubishi servo motors and drivers on X/Y/Z axes
• Taiwan-brand spindle unit (Kenturn or Royal), belt drive, 6000 rpm maximum speed
• Taiwan-brand 55mm precision linear guides on X/Y axes
• Box way on Z-axis for heavy cutting rigidity
• Taiwan-brand precision ball leadscrew
• Nitrogen balance cylinder on Z-axis spindle head
• 24-tool disc-type tool magazine
• Screw-type chip conveyor x 2
• Chain-type chip conveyor and chip bucket x 1
• Automatic centralized lubrication system
• Heat exchanger for electrical cabinet
• Air gun and water gun
• Leveling pads, nuts, and bolts
• Standard tools and tool box
• Schneider Electric electrical components

Typical Application Cases

Typical applications include nuclear power components and heavy welded structures that demand single-setup machining across a 3000mm-wide table.

Typical Application: Nuclear Power Components and Large Flange Machining

Reactor support flanges over 2.5m in diameter and turbine low-pressure casings demand strict dimensional stability. A standard gantry’s Y-axis can compromise this due to torsional flex during wide-table passes. On a GMC6032 or GMC8032, the Φ80mm Y-axis ballscrew with 8 guide blocks supports the wide-table torsional loads. The machine is rated with 0.008mm positioning accuracy according to standard acceptance testing procedures. An optional Heidenhain scale further controls thermal drift during extended cycles.

• Y-axis structure is configured to support position stability across a 3200mm-wide pass
• Positioning accuracy rated at 0.008mm
• Box-way Z-axis provides dampening under heavy cuts

Typical Application: Heavy Welded Structure Skim-Cut Machining

Welded machinery frames and energy equipment bases in the 15-18 ton range carry post-weld distortion. This requires a heavy skim cut to true up mounting faces, generating large volumes of thick chips. On a GMC5032 or GMC6032, the 3000mm-wide worktable holds the full base in one setup. The 8 m/min Z-axis rapid on heavier models protects positioning accuracy through repeated plunge cycles, while the combined chip conveyor system clears the table without operator intervention.

• Single-setup skim cut across a 3000mm-wide base replaces multiple operations
• Z-axis rapid held at 8 m/min to protect precision on 57-67 ton frames
• Combined chip conveyor clears heavy weld-scale volume during unattended runs

Frequently Asked Questions

The following questions address the most common structural and configuration considerations for this series.

When is a gantry machining center preferable to a moving-column VMC?

A gantry machining center suits workpieces too wide or too heavy to move safely across a VMC’s table, since the fixed table lets the gantry carry the beam and spindle across the part instead. This becomes the deciding factor once worktable width or part weight exceeds what a moving-column VMC’s table and ways can support.

How does the gantry structure maintain rigidity across a wide worktable?

This series pairs the Y-axis with a Φ80mm ballscrew and 8 guide blocks rather than relying on box-way rigidity alone, which controls the torsional flex that a 3200mm-wide table would otherwise develop under heavy Y-axis feed. Guide block distribution along the beam adds further support at the table’s outer edges.

What is the maximum workpiece size this gantry machining center can accommodate?

The GMC8032 handles workpieces up to roughly 7000mm long and 3000mm wide across a table rated for 22 tons, though practical limits also depend on fixture overhang and spindle reach at the table ends. Workpieces exceeding this envelope should move to the next size class up.

What foundation requirements apply to large gantry machining centers?

Machine net weight in this series ranges from 47,000kg to 67,000kg, so foundation design should account for point loading under the columns and worktable rather than an even floor load. A level, reinforced concrete base sized to the specific model’s footprint and weight is standard practice before installation.
