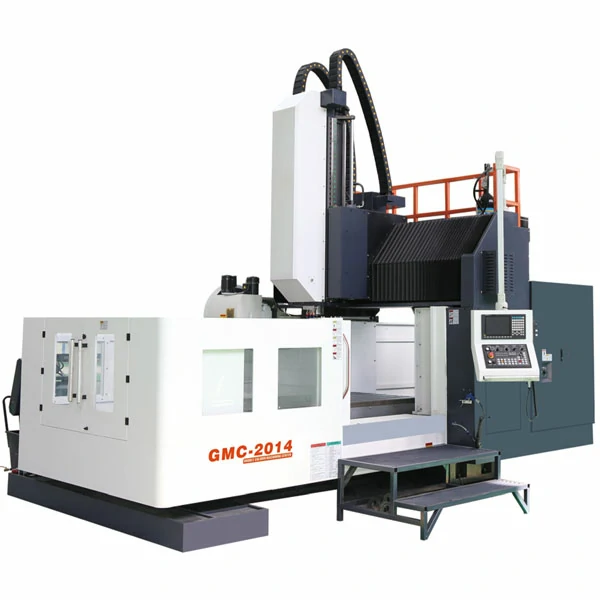

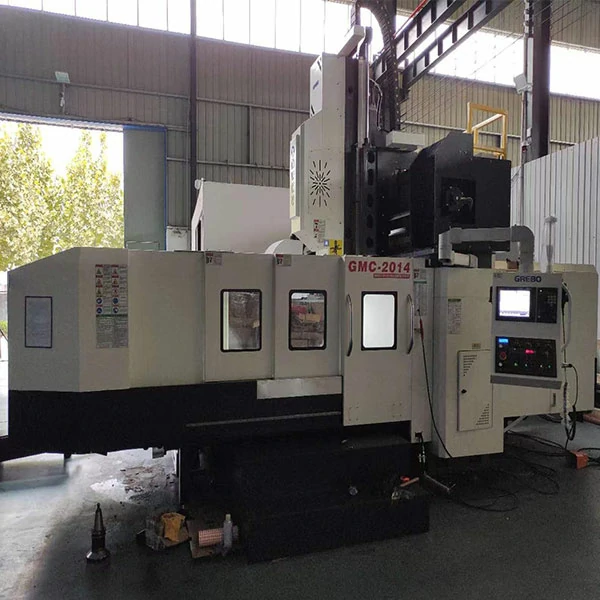

CNC Gantry Milling Machine for Heavy Mold Machining – GMC1614 to GMC3014

Overview: Heavy Mold and Template Machining

A fixed-gantry design with 1600–3000mm X-travel uses a dual-column frame to support wide-table milling without cantilever deflection.

A common assumption is that any gantry frame automatically solves rigidity problems for large molds. In reality, consistent cutting quality requires the ballscrew diameter, guideway block count, and worktable load rating to match the actual workpiece length and weight. The GMC1614 through GMC3014 series spans 1600mm to 3000mm X-travel, but the real engineering difference lies in whether the machine uses a Φ50/10 or Φ63/12 X-axis leadscrew. For workpieces under 1600mm, a compact gantry machining center often offers better floor-space economy.

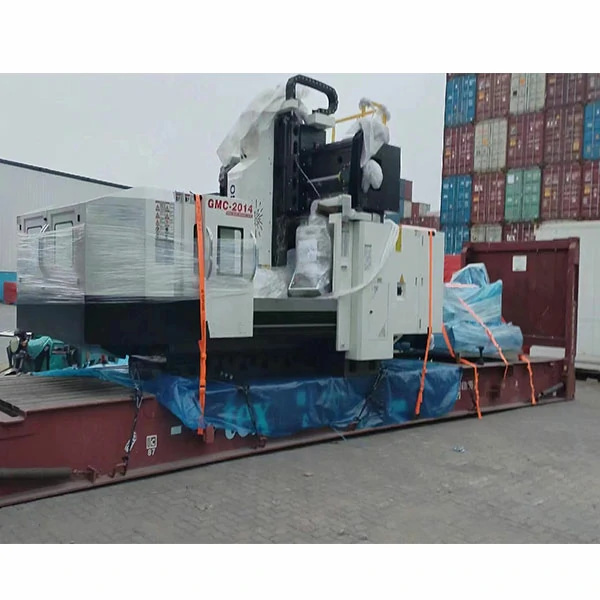

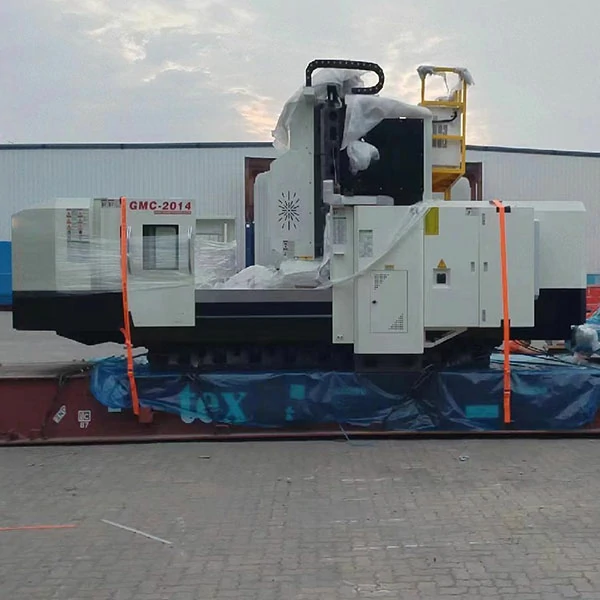

Designed by a team of 15 engineers in a CE-certified plant, the GMC series ships to mold manufacturers across 50 countries.

Key Structural Features

This CNC gantry milling machine separates linear guideways on the horizontal axes from a box-way Z-axis, balancing rapid traverse speed with heavy-cut damping.

• The fixed dual-column frame with 1500mm between columns eliminates cantilever deflection risk, so wide mold bases sit directly under the spindle centerline without table-end sag during heavy cuts.
• The X and Y axes ride on 55mm linear guideways, while the Z-axis uses a box-way design. This split arrangement keeps rapid traverse at 15m/min on XY while the rectangular hard rail dampens heavy-cut vibration on Z.
• A BT50 belt-driven spindle outputs 18.5kW peak power, maintaining cutting edge stability during deep roughing of hardened mold steels at low rpm with high torque.
• Two screw-type chip conveyors feed a single chain conveyor, as large gantry spans create dead zones where chips pile up and re-enter the cut during deep cavity milling.

Which GMC Model Fits Your Mold Size?

Select the right model based on your maximum workpiece dimensions to optimize your investment and machining stability.

Model	Recommended Application
GMC1614	Medium mold bases, automotive inserts
GMC2014	General mold plates and templates
GMC2514	Large injection molds and dies
GMC3014	Long draw dies and large templates

Technical Specifications

This size class publishes complete multi-model data so buyers can match stroke, load, and accuracy to actual part dimensions.

Parameter	Unit	GMC1614	GMC2014	GMC2514	GMC3014
X / Y / Z Axis Travel	mm	1600 / 1500 / 800	2000 / 1500 / 800	2500 / 1500 / 800	3000 / 1500 / 800
Spindle Nose to Worktable	mm	150 – 950	150 – 950	150 – 950	150 – 950
Distance Between Two Columns	mm	1500	1500	1500	1500
Leadscrew Dia. / Pitch (X/Y/Z)	mm	X/Y/Z: Φ50 / 10 (all three axes)	X/Y/Z: Φ50 / 10 (all three axes)	X: Φ63 / 12; Y/Z: Φ50 / 10	X: Φ63 / 12; Y/Z: Φ50 / 10
Guideway Type / Width (X/Y/Z)	mm	X/Y: 55 linear guideway; Z: box way	X/Y: 55 linear guideway; Z: box way	X/Y: 55 linear guideway; Z: box way	X/Y: 55 linear guideway; Z: box way
X Axis / Y Axis Guideway Blocks	pcs	6 / 4	6 / 4	8 / 4	10 / 4
Worktable Size	mm	1700 × 1200	2100 × 1200	2600 × 1200	3100 × 1200
T-Slot (Qty × Width × Pitch)	mm	7 × 22 × 170	7 × 22 × 170	7 × 22 × 170	7 × 22 × 170
Max Worktable Loading	Ton	2.5	3.5	4.5	5.5
Spindle Taper	–	BT50	BT50	BT50	BT50
Spindle Transmission	–	Belt drive	Belt drive	Belt drive	Belt drive
Spindle Speed	rpm	6000	6000	6000	6000
Spindle Motor Power	kW	15 / 18.5 (continuous / peak)	15 / 18.5 (continuous / peak)	15 / 18.5 (continuous / peak)	15 / 18.5 (continuous / peak)
X / Y / Z Fast Moving Speed	m/min	15 / 15 / 15	15 / 15 / 15	15 / 15 / 15	15 / 15 / 15
Cutting Feed Speed	mm/min	1 – 10000	1 – 10000	1 – 10000	1 – 10000
Tool Magazine Capacity and Type	pcs	24 tools, disc type	24 tools, disc type	24 tools, disc type	24 tools, disc type
Positioning Accuracy	mm	0.008	0.008	0.008	0.008
Repeat Accuracy	mm	0.005	0.005	0.005	0.005
Machine Net Weight	kg	14000	15500	17000	18500

Accuracy testing follows ISO 230-2:2014 positioning and repeatability test methods.

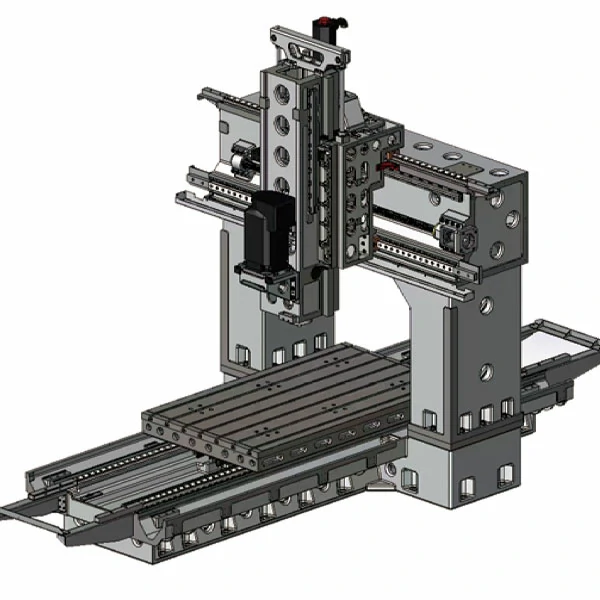

Engineering Insights: Matching Leadscrew and Guideway Specs to Workpiece Size

A CNC gantry milling machine series with 1600–3000mm travel requires matching leadscrew diameter and guideway block count to the workpiece length and mass.

If your workpiece measures under 2000mm in length and weighs less than 3.5 tons, the GMC2014 offers the most direct path: its three-axis Φ50/10 leadscrews and six X-axis guideway blocks keep costs down while holding 0.008mm positioning accuracy across the 2000mm stroke.

Once the part exceeds 2200mm, lead deflection and thermal growth become real threats to hole-pattern consistency at the table ends. That is why the GMC2514 and GMC3014 switch to a Φ63/12 X-axis ballscrew and increase guideway blocks to eight and ten respectively. The thicker screw and wider bearing span reduce deflection and improve positioning stability over long travels.

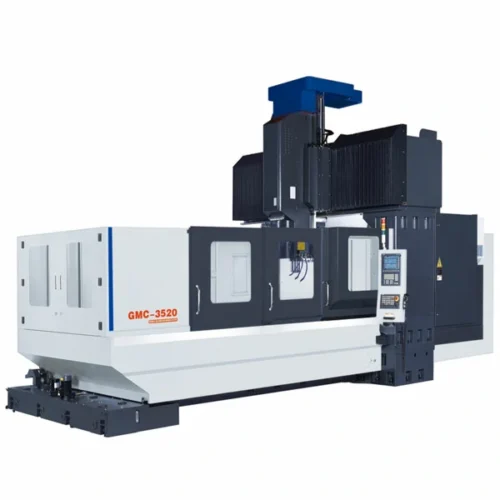

If the mold base plus fixture approaches 4.5 tons, the GMC2514’s 4.5-ton table rating leaves a safer dynamic margin than the GMC2014’s 3.5-ton limit. Need spans beyond 3000mm or aerospace structural parts? Step up to a larger double column machining center.

Note: The nitrogen balance cylinder on the Z-axis supports the spindle head during vertical positioning, but it does not replace the need for proper foundation mass. A minimum 300mm reinforced concrete pad is recommended.

Standard Configuration

The standard configuration of this CNC gantry milling machine series includes a Mitsubishi M80A control, BT50 belt spindle, and dual chip removal system.

CNC and Drive System

• Mitsubishi M80A controller
• Mitsubishi servo motors and drives on X/Y/Z axes

Spindle and Mechanical Transmission

• BT50 belt-driven spindle, 6000 rpm max
• X/Y axes: 55mm wide precision linear guideways (Taiwan brand)
• Z axis: rectangular box way for heavy-cut rigidity
• Precision ball leadscrew from Taiwan
• Nitrogen balance cylinder on Z axis (spindle head)

Tool Magazine and Chip Removal

• 24-tool disc-type automatic tool changer
• Screw-type chip conveyor × 2
• Chain-type chip conveyor and chip bucket × 1

Cooling, Lubrication and Protection

• Centralized automatic lubricating system
• Heat exchanger for electrical cabinet

Standard Accessories

• High-pressure air gun and coolant water gun
• Levelling pads, nuts and bolts
• Standard tools and tool box

Typical Application Cases

Typical applications for a CNC gantry milling machine in the mold industry include large draw dies, deep injection cavities, and long template bases.

Application: Automotive Draw Die Machining

Large automotive draw dies often exceed 2500mm in length, which forces operators to split roughing and finishing across two setups on smaller machines. Under typical mold machining conditions, a GMC3014 with 3000mm X-travel and 1500mm Y-travel can rough and finish a 2500mm-class draw die in one clamping.

• The 3100 × 1200mm worktable rated for 5.5 tons supports the die block and fixture without overload.
• The BT50 spindle at 18.5kW peak power handles deep cuts in Cr12MoV mold steel.
• Single-setup completion reduces total machining time by eliminating repositioning and datum re-establishment.

Application: Deep-Cavity Injection Mold Machining

For large automotive bumper molds weighing around 4 tons, the GMC2514 provides a 2600 × 1200mm worktable rated for 4.5 tons. This leaves sufficient dynamic load margin for the mold frame plus clamping system. The 1500mm Y-travel also accommodates future four-axis rotary table upgrades for complex cavity angles.

• Dual screw conveyors merging into one chain conveyor pull chips out of deep cavities before secondary cutting damages the surface. This prevents a common issue when machining deep P20 or NAK80 mold cavities.
• The Z-axis box-way design sustains cutting rigidity during deep cavity wall milling, maintaining surface finish on long vertical passes.

Application: Large Template Base Machining with Long-Travel Accuracy

Standard gantry machines with Φ50/10 ballscrews often struggle with lead deflection beyond 2200mm travel, causing end-hole position drift and base-plane waviness on large injection mold bases. The GMC3014 uses a Φ63/12 X-axis leadscrew and ten guideway blocks to resist flex across the full 3000mm stroke.

• Positioning accuracy is specified at 0.008mm under standard test conditions.
• The Mitsubishi M80A controller’s interpolation and thermal compensation algorithms support repeatable machining accuracy on large templates under controlled machining conditions, enabling precise boring of guide pin holes at both ends.

Frequently Asked Questions

Buyers evaluating a double column machining center for large parts often ask about gantry advantages, foundation needs, and roughing versus finishing capability.

When is a gantry machining center preferable to a moving-column VMC?

A moving-column VMC works well for smaller prismatic parts, but its table moves in Y and the column overhangs in X. Once the workpiece width passes roughly 1200mm, the table mass and cantilever moment strain the guideways. A fixed-gantry CNC gantry milling machine keeps the table stationary and moves the spindle across a rigid bridge, which maintains accuracy on wide mold bases and large templates.

What are the advantages of fixed-gantry design for large mold bases?

The fixed-gantry design locks the spindle bridge to two vertical columns, creating a closed frame that resists twisting when the cutter engages heavy sections at the table edges. For large mold bases, this means the spindle centerline stays perpendicular to the base plane even during asymmetric roughing cuts near the table ends.

What foundation requirements apply to large gantry machining centers?

These machines weigh between 14 and 18.5 tons. The foundation must absorb dynamic cutting forces without flexing, so a 300mm-thick reinforced concrete pad with anchor bolts is the practical minimum. Soft or isolated floors allow vibration transmission back into the part surface.

Can gantry machining centers handle both roughing and precision finishing?

The series handles both. The Z-axis box-way and BT50 spindle with 18.5kW peak power support aggressive roughing in hardened steels, while the 0.008mm positioning accuracy and 0.005mm repeatability allow finish passes that hold tight contour tolerances on mold surfaces.
